HAOYE AUV

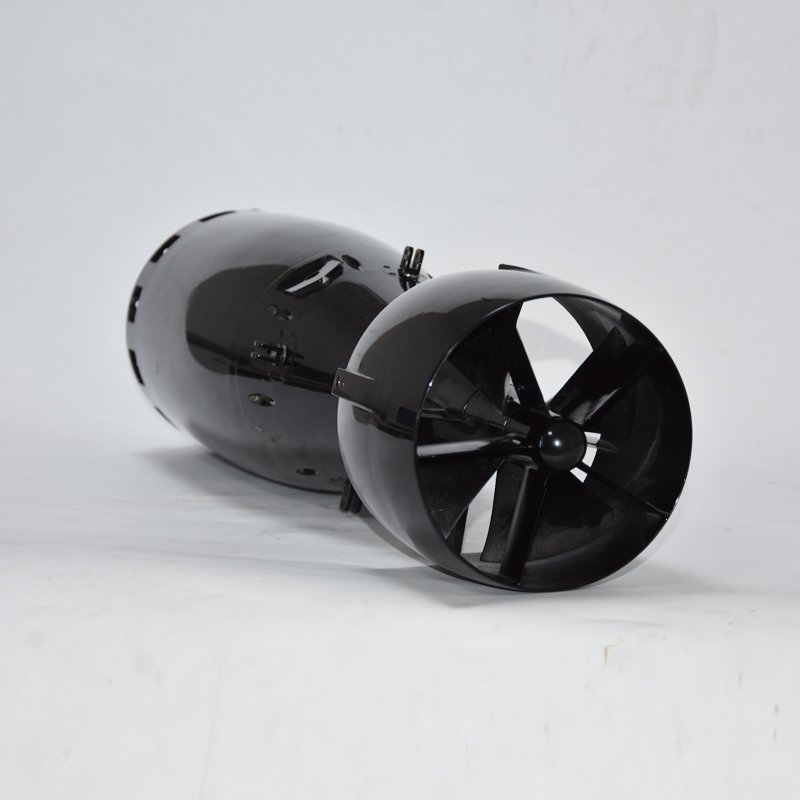

WD180-30 AUV

• A power of 10 kW enables the vehicle to reach a speed of 30 knots

Thrust20 knot @ 57.5 Kg / 25 knot @ 47.6 Kg / 30 knot @ 40.3 Kg

Rated Rotational Speed260° /s

Rated Voltage12VDC

MaterialHousing: Aluminum Alloy / Propeller: Stainless Steel

Rotation DirectionRight Hand Rotation

TemperatureStorage Temperature: -40~70℃, Operating Temperature: -5~40℃

Sealing TypeDynamic Sealing

Operating Water Depth0-300m

DriverBuilt-in

Signal Power Supply24 VDC(±5%), ≤210 mA

FairingBlack

Control Mode/Speed FeedbackCAN

Weight23.8Kg

Housing MaterialAluminum Alloy

Rated Torque10 Nm

Control Mode / Speed FeedbackCAN

Bu ürün için teklif alın

Bilgilerinize en geç bir iş günü içinde dönüş yaparız.

Ürün hakkında

WD180-30 AUV

• A power of 10 kW enables the vehicle to reach a speed of 30 knots

• Suitable for Autonomous Underwater Vehicles (AUVs) with a diameter of φ180 mm

• Its efficiency is particularly outstanding at an underwater navigation speed of 30 knots, which is conducive to long-time endurance

Thruster Parameters

Steering Gear Parameters

Overall Dimensions

Teknik özellikler:
Thrust: 20 knot @ 57.5 Kg / 25 knot @ 47.6 Kg / 30 knot @ 40.3 Kg
Rated Rotational Speed: 260° /s
Rated Voltage: 12VDC
Material: Housing: Aluminum Alloy / Propeller: Stainless Steel
Rotation Direction: Right Hand Rotation
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Dynamic Sealing
Operating Water Depth: 0-300m
Driver: Built-in
Signal Power Supply: 24 VDC(±5%), ≤210 mA
Fairing: Black
Control Mode/Speed Feedback: CAN
Weight: 23.8Kg
Housing Material: Aluminum Alloy
Rated Torque: 10 Nm
Control Mode / Speed Feedback: CAN
