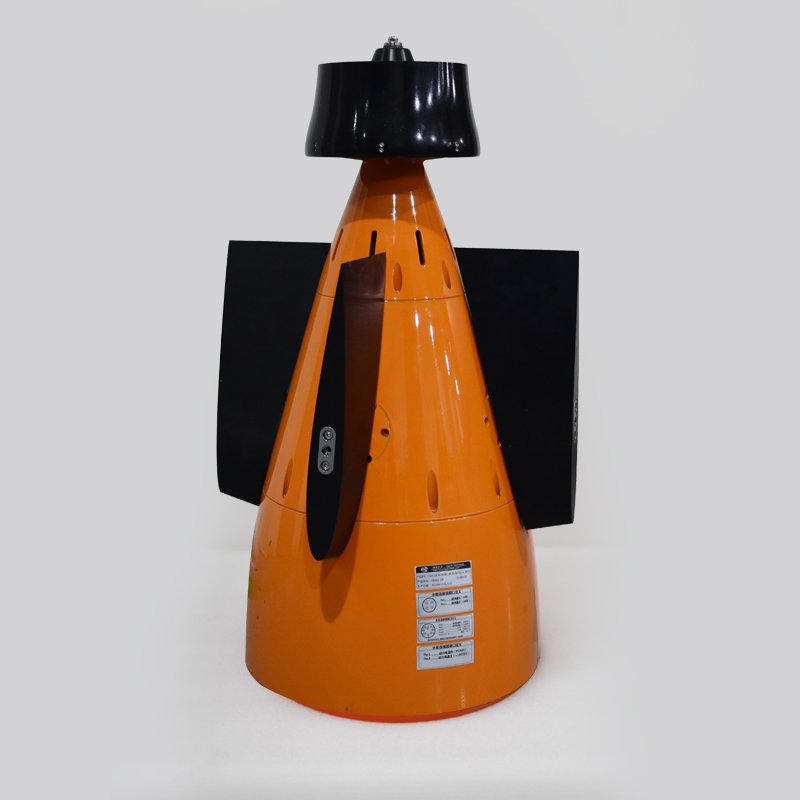

HAOYE AUV

WD324-16 AUV

• A power of 4.5 kW enables the vehicle to reach a speed of 16 knots

Thrust8 knot @ 65.8 Kg / 12 knot @ 44.6 Kg / 16 knot @ 34 Kg

Rated Rotational Speed300° /s

Rated Voltage24VDC

MaterialHousing: Aluminum Alloy / Propeller: Stainless Steel

Rotation DirectionRight Hand Rotation

TemperatureStorage Temperature: -40~70℃, Operating Temperature: -5~40℃

Sealing TypeDynamic Sealing

Operating Water Depth0-300m

DriverBuilt-in

Signal Power Supply24 VDC(±5%), ≤210 mA

FairingBlack

Control Mode/Speed FeedbackCAN

Weight65Kg

Housing MaterialAluminum Alloy

Rated Torque25 Nm

Control Mode / Speed FeedbackCAN

Bu ürün için teklif alın

Bilgilerinize en geç bir iş günü içinde dönüş yaparız.

Ürün hakkında

WD324-16 AUV

• A power of 4.5 kW enables the vehicle to reach a speed of 16 knots

• Suitable for Autonomous Underwater Vehicles (AUVs) with a diameter of φ324 mm

• Its efficiency is particularly outstanding at an underwater navigation speed of 16 knots, which is conducive to long-time endurance

Thruster Parameters

Steering Gear Parameters

Overall Dimensions

Teknik özellikler:
Thrust: 8 knot @ 65.8 Kg / 12 knot @ 44.6 Kg / 16 knot @ 34 Kg
Rated Rotational Speed: 300° /s
Rated Voltage: 24VDC
Material: Housing: Aluminum Alloy / Propeller: Stainless Steel
Rotation Direction: Right Hand Rotation
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Dynamic Sealing
Operating Water Depth: 0-300m
Driver: Built-in
Signal Power Supply: 24 VDC(±5%), ≤210 mA
Fairing: Black
Control Mode/Speed Feedback: CAN
Weight: 65Kg
Housing Material: Aluminum Alloy
Rated Torque: 25 Nm
Control Mode / Speed Feedback: CAN
