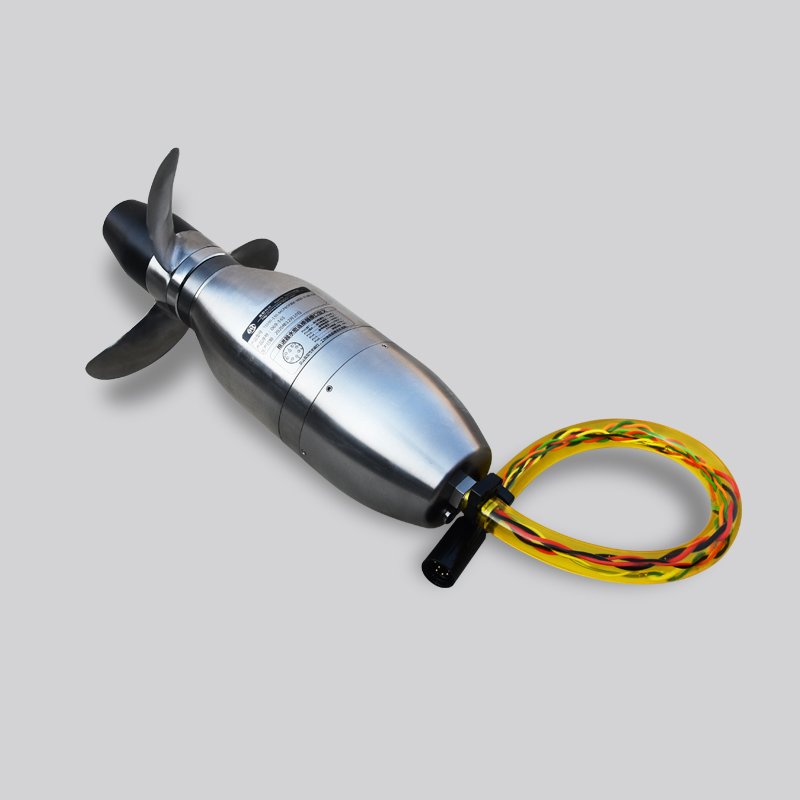

TZ1050 AUV Thruster

• Applicable to the main propulsion of autonomous underwater vehicles (AUVs) with a diameter of φ300mm and above.

• Applicable to the main propulsion of autonomous underwater vehicles (AUVs) with a diameter of φ300mm and above.

• Adopts a small disk ratio and willow leaf propeller design, enabling both the motor and propeller to operate at high efficiency points.

• It exhibits particularly excellent efficiency when the underwater navigation speed is 3~10 knots.

Propulsor Overall Dimensions Unit: mm

Driver Overall Dimensions Unit: mm

Operating Water Depth: 0-6000m

Thrust vs Speed Relationship Table (1)

Thrust vs Input Power Relationship Table (2)

Teknik özellikler:
Rated Speed: 1400r/min
Rated Voltage: 72 — 300 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: Left Hand / Right Hand
Propeller Material: Stainless Steel
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Zero-Permeability Magnetic Coupling Rotary Seal
Operating Water Depth: 0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil Filled Compensation for Operating Water Depth >1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%）
Fairing: None
Control Mode/Speed Feedback: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
