HAOYE Thruster

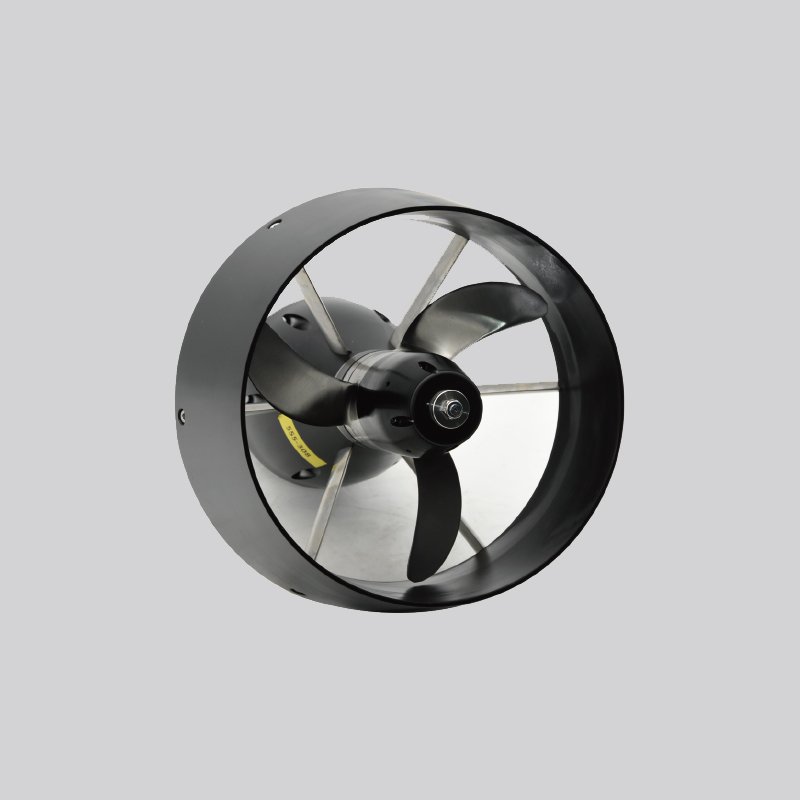

TZ1055 AUV Thruster

TZ1055 AUV Thruster — Thruster. Güç: 1.8kW.

Rated Rotational Speed1750r/min

Rated Voltage72 — 300 VDC

Housing MaterialAluminum Alloy / Titanium Alloy

Rotation DirectionLeft Hand / Right Hand

Propeller MaterialStainless Steel

TemperatureStorage Temperature: -40~70℃, Operating Temperature: -5~40℃

Sealing TypeZero-Permeability Magnetic Coupling Rotary Seal

Operating Water Depth0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil Filled Compensation for Operating Water Depth >1500m

DriverBuilt-in / External

Signal Power Supply12VDC or 24VDC, Rated 3W

NozzleBlack

Control Mode/Rotational Speed FeedbackAnalog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN

Operating Water Depth (m)0-850

Overall Dimensions (mm)Diameter: 243.4

Length (mm)410.4

Air Weight (Kg)/

Underwater Weight (Kg)/

Connector ModelBH8M

Bu ürün için teklif alın

Bilgilerinize en geç bir iş günü içinde dönüş yaparız.

Ürün hakkında

TZ1055 AUV Thruster

TZ1055 AUV Thruster — Thruster. Güç: 1.8kW.

Thruster Overall Dimensions Unit: mm

Operating Water Depth: 0-6000m

Teknik özellikler:
Rated Rotational Speed: 1750r/min
Rated Voltage: 72 — 300 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: Left Hand / Right Hand
Propeller Material: Stainless Steel
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Zero-Permeability Magnetic Coupling Rotary Seal
Operating Water Depth: 0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil Filled Compensation for Operating Water Depth >1500m
Driver: Built-in / External
Signal Power Supply: 12VDC or 24VDC, Rated 3W
Nozzle: Black
Control Mode/Rotational Speed Feedback: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
Operating Water Depth (m): 0-850
Overall Dimensions (mm): Diameter: 243.4
Length (mm): 410.4
Air Weight (Kg): /
Underwater Weight (Kg): /
Connector Model: BH8M
