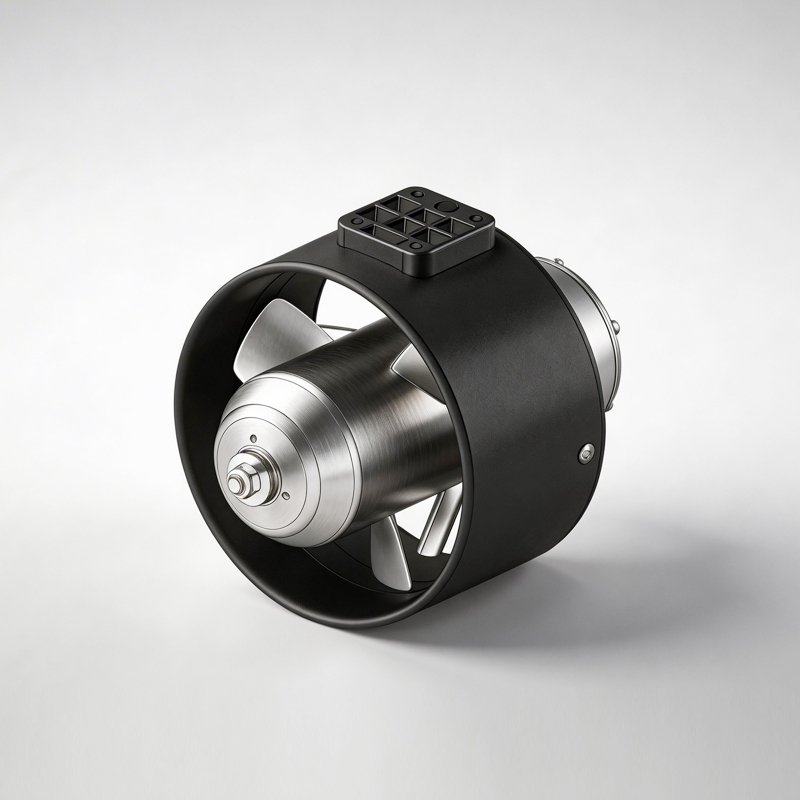

S200 ROV Thruster

The motor and controller are integrated into one unit with no external ESC, resulting in a simpler and more stable system.

Integrated Built-in Drive

The motor and controller are integrated into one unit with no external ESC, resulting in a simpler and more stable system.

Magnetic Fully Sealed Structure

Adopting the same magnetic sealing technology used for deep‑diving vehicles in the Mariana Trench, this design eliminates the traditional potting process, offering excellent resistance to sand, mud and seawater corrosion.

1000‑meter Deep‑sea Operation Depth

Suitable for use in complex deep‑sea and open‑sea environments.

Isolated Communication Control Scheme

The controller features isolated communication for strong anti‑interference performance, ensuring more stable operation under complex working conditions.

Teknik özellikler:
Parameter Name: Parameter Value
Product Name: S200
Power: 0.65KW
Size: Φ100mm*133mm
Thrust: Forward 6.7KG/Reverse 5.05KG
Voltage: 10~24VDC
Diving Depth: 0-300 meters
Drive: Built-in driver
Control Method: CAN (standard) with isolation/optional PWM
Shell material: Aluminum alloy/composite materials
weight: ≤0.75Kg
