HAOYE Thruster

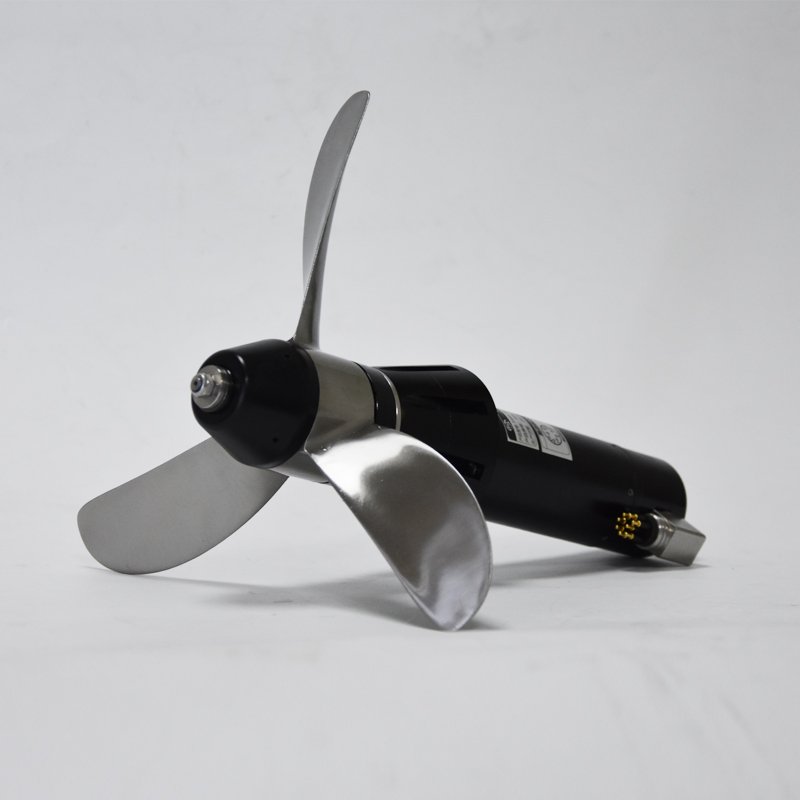

T350 Underwater Thruster

Suitable for main propulsion of Autonomous Underwater Vehicles (AUVs) with a diameter of over 300mm.

Rated Speed480r/min

Rated Voltage48 VDC

Housing MaterialAluminum Alloy

Rotation DirectionCCW / CW

Propeller MaterialStainless Steel

TemperatureStorage: -40~70℃, Operating: -5~40℃

Sealing TypeZero-Permeation Magnetic Coupling Rotary Seal

Working Water Depth0-850m / 0-1500m / 0-6000m / Full-Ocean Depth Oil Filled Compensation for Depth ＞1500m

DriverBuilt-in / External

Signal Power Supply12VDC(±5%），≤210mA

FairingNone

Control Mode / Speed FeedbackCAN

Bu ürün için teklif alın

Bilgilerinize en geç bir iş günü içinde dönüş yaparız.

Ürün hakkında

T350 Underwater Thruster

Suitable for main propulsion of Autonomous Underwater Vehicles (AUVs) with a diameter of over 300mm.

The propeller blades adopt a willow-leaf shaped design with high efficiency, ideal for long-range AUV applications.

It delivers particularly outstanding efficiency at an underwater navigation speed of 3 knots.

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Teknik özellikler:
Rated Speed: 480r/min
Rated Voltage: 48 VDC
Housing Material: Aluminum Alloy
Rotation Direction: CCW / CW
Propeller Material: Stainless Steel
Temperature: Storage: -40~70℃, Operating: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full-Ocean Depth Oil Filled Compensation for Depth ＞1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%），≤210mA
Fairing: None
Control Mode / Speed Feedback: CAN

Kullanım alanları

01Sualtı araçları ve gliderler

02ROV ve AUV ana itki sistemleri

03Derin deniz keşif ve araştırma platformları

Teknik veri
