HAOYE Thruster

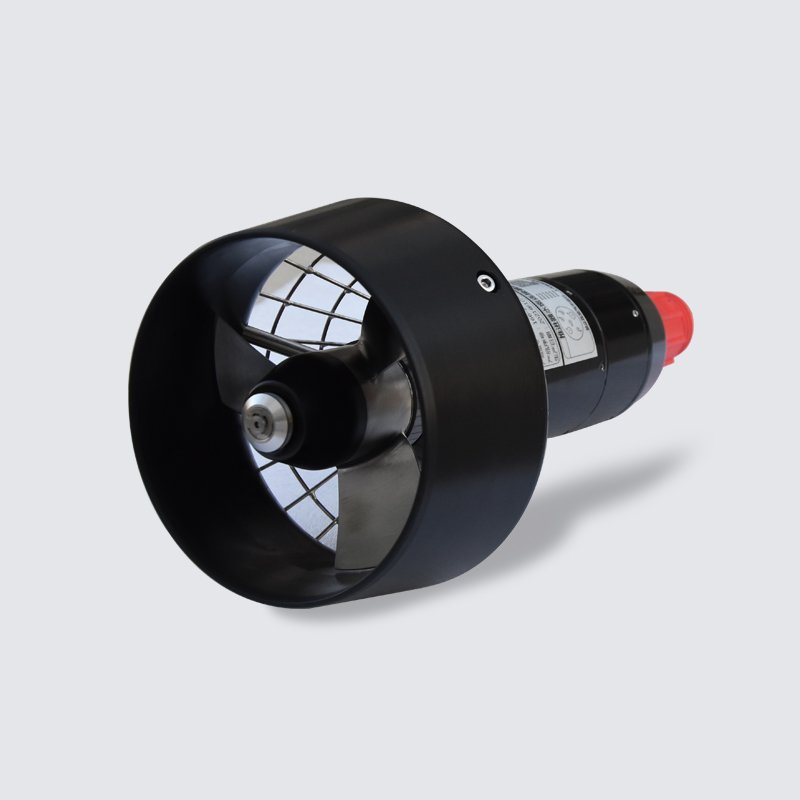

T405 Underwater Thruster

Suitable for the main propulsion of Autonomous Underwater Vehicles (AUVs) with a diameter of over 200mm, as well as small and medium-sized ROVs

Rated Speed3300r/min

Rated Voltage48 — 300 VDC

Housing MaterialAluminum Alloy / Titanium Alloy

Rotation DirectionCCW / CW

Propeller MaterialStainless Steel

TemperatureStorage: -40~70℃, Operating: -5~40℃

Sealing TypeZero-Permeation Magnetic Coupling Rotary Seal

Working Water Depth0-850m / 0-1500m / 0-6000m / Full-Ocean DepthOil Filled Compensation for Depth ＞1500m

DriverBuilt-in / External

Signal Power Supply12VDC(±5%）

FairingBlack

Control Mode / Speed FeedbackCAN

Bu ürün için teklif alın

Bilgilerinize en geç bir iş günü içinde dönüş yaparız.

Ürün hakkında

T405 Underwater Thruster

Suitable for the main propulsion of Autonomous Underwater Vehicles (AUVs) with a diameter of over 200mm, as well as small and medium-sized ROVs

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Teknik özellikler:
Rated Speed: 3300r/min
Rated Voltage: 48 — 300 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: CCW / CW
Propeller Material: Stainless Steel
Temperature: Storage: -40~70℃, Operating: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full-Ocean DepthOil Filled Compensation for Depth ＞1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%）
Fairing: Black
Control Mode / Speed Feedback: CAN

Kullanım alanları

01Sualtı araçları ve gliderler

02ROV ve AUV ana itki sistemleri

03Derin deniz keşif ve araştırma platformları

Teknik veri
