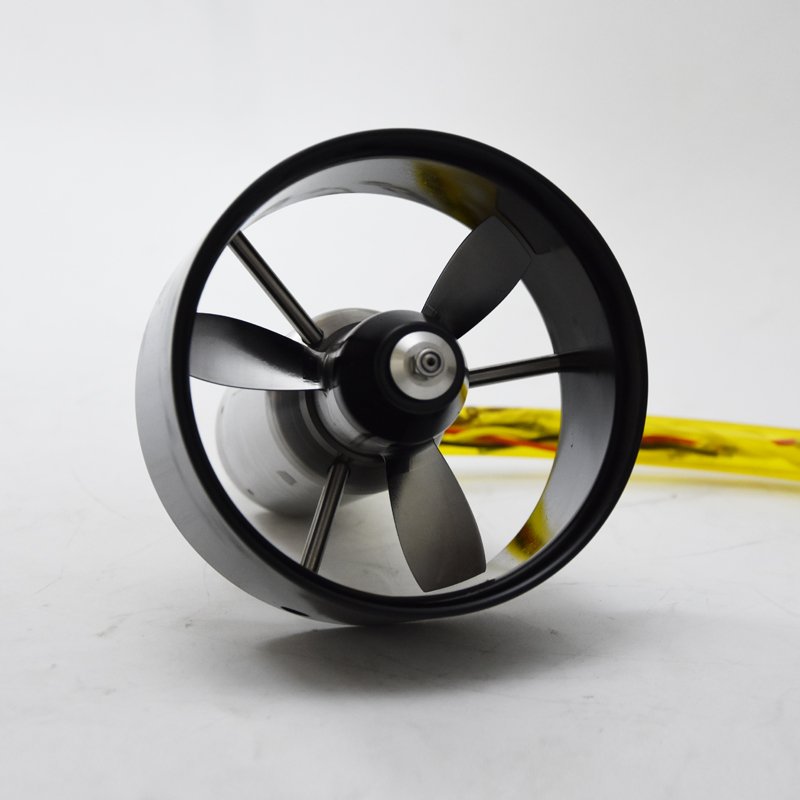

TZ430 Underwater Thruster

Designed exclusively for the propulsion systems of small ROVs, its unique feature lies in the synchronous design of the propeller and fairing, which ensures symmetric propeller blades and balanced forward and reverse thrust. The fairing provides thrust augmentation for propulsion. It enables smoother forward-reverse switching of the thruster, enhancing its reliability and durability. With the direct connection of DC motor to the propeller, partial shafting loss is reduced and noise is lowered effectively.

Designed exclusively for the propulsion systems of small ROVs, its unique feature lies in the synchronous design of the propeller and fairing, which ensures symmetric propeller blades and balanced forward and reverse thrust. The fairing provides thrust augmentation for propulsion. It enables smoother forward-reverse switching of the thruster, enhancing its reliability and durability. With the direct connection of DC motor to the propeller, partial shafting loss is reduced and noise is lowered effectively.

Equipped with a closed-loop speed control function, this feature ensures the speed accuracy of each unit reaches ±10rpm when multiple thrusters are operated simultaneously, meeting the requirements for high consistency.

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Teknik özellikler:
Rated Speed: 2300r/min
Rated Voltage: 48 — 300 VDC
Housing Material: Aluminum Alloy / Titanium Alloy
Rotation Direction: CCW / CW
Propeller Material: Stainless Steel
Temperature: Storage: -40~70℃, Operating: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full-Ocean DepthOil Filled Compensation for Depth ＞1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%）, ≤250mA
Fairing: Black
Control Mode / Speed Feedback: Analog Voltage (Pulse Feedback / Analog Voltage Feedback)PPM / RS485 / CAN
