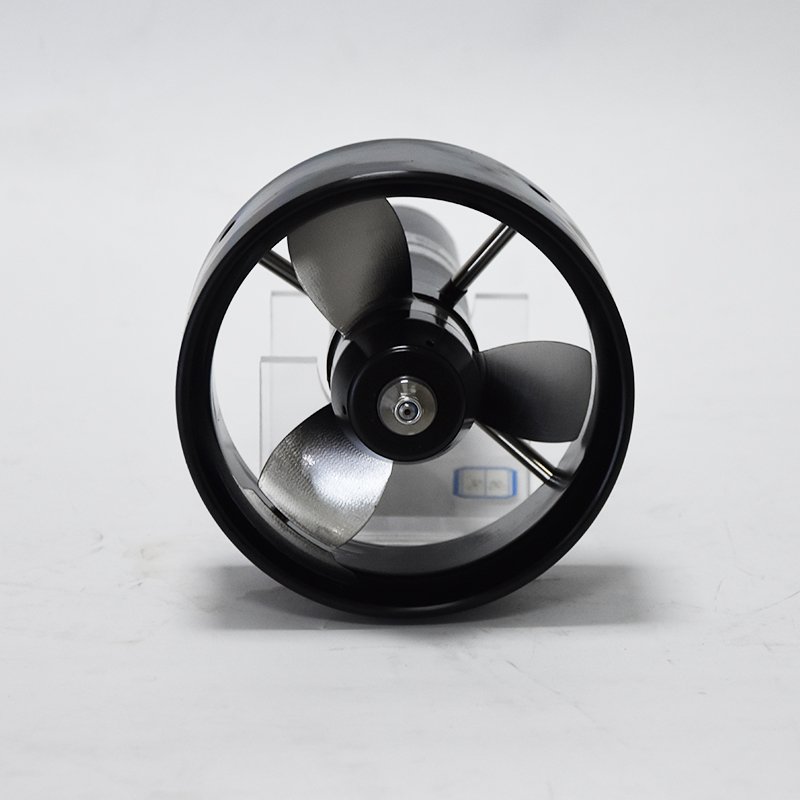

T530 Underwater Thruster

• Specifically designed for small and medium-sized ROV propulsion equipment,

• Specifically designed for small and medium-sized ROV propulsion equipment,

• Frequent forward and reverse switching is required. Therefore, multiple optimizations have been made in terms of bearing material selection, back electromotive force control, protection functions and internal slope control, making the thruster switch more smoothly between forward and reverse directions and improving its reliability and durability.

Thruster Overall Dimensions Unit：mm

Driver Overall Dimensions Unit：mm

Operating Water Depth：0-6000m

Teknik özellikler:
Rated Rotational Speed：: 2500r/min
Rated Voltage：: 48 — 300 VDC
Housing Material：: Aluminum Alloy / Titanium Alloy
Rotation Direction：: Left Rotation / Right Rotation
Propeller Material：: Stainless Steel
Temperature：: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type：: Zero-Permeability Magnetic Coupling Rotary Seal
Operating Water Depth：: 0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil-filled compensation for operating water depth >1500m
Driver：: Built-in / External
Signal Power Supply：: 12VDC(±5%）, ≤250mA
Fairing：: Black
Control Method / Rotational Speed Feedback：: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
