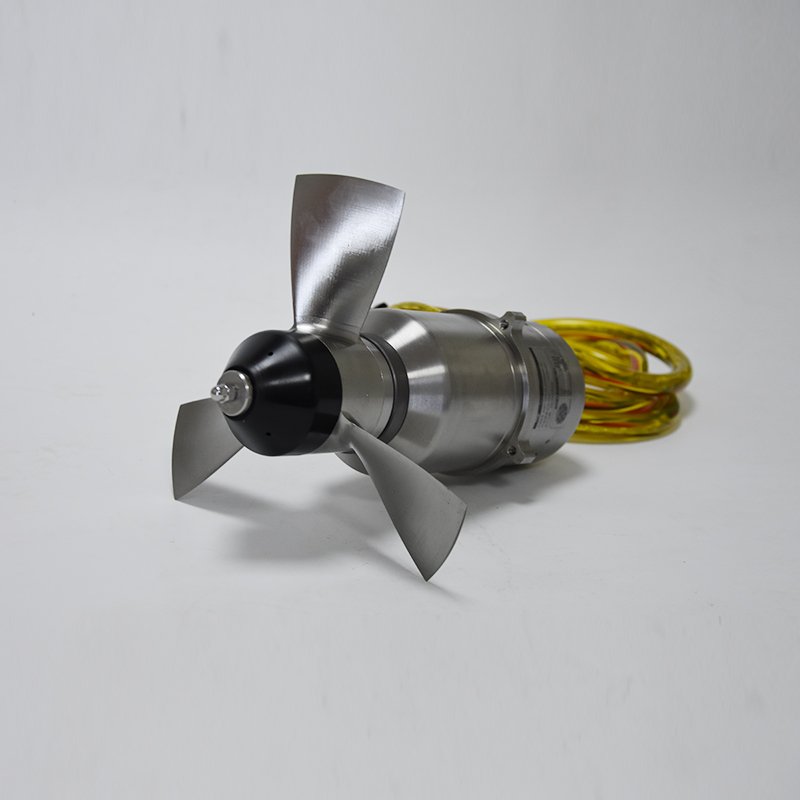

T2000 Underwater Thruster

• Equal forward and reverse thrust, suitable for auxiliary thrusters of AUVs with a diameter of φ600mm or above.

• Equal forward and reverse thrust, suitable for auxiliary thrusters of AUVs with a diameter of φ600mm or above.

• Direct motor-to-propeller connection for high efficiency and low noise.

• Fast switching between forward and reverse rotation, with protection functions such as overvoltage, overtemperature, overcurrent, and locked-rotor protection.

Thruster Overall Dimensions Unit: mm

Driver Overall Dimensions Unit: mm

Working Water Depth: 0-6000m

Teknik özellikler:
Rated Speed: 950r/min
Rated Voltage: 300 — 500 VDC
Housing Material: Titanium Alloy
Rotation Direction: Left-hand Rotation / Right-hand Rotation
Propeller Material: Stainless Steel
Temperature: Storage Temperature: -40~70℃, Operating Temperature: -5~40℃
Sealing Type: Zero-Permeation Magnetic Coupling Rotary Seal
Working Water Depth: 0-850m / 0-1500m / 0-6000m / Full Ocean DepthOil-filled compensation for working water depth>1500m
Driver: Built-in / External
Signal Power Supply: 12VDC(±5%), ≤210mA
Fairing: None
Control Method/Speed Feedback: Analog Voltage (Pulse Feedback/Analog Voltage Feedback)PPM / RS485 / CAN
